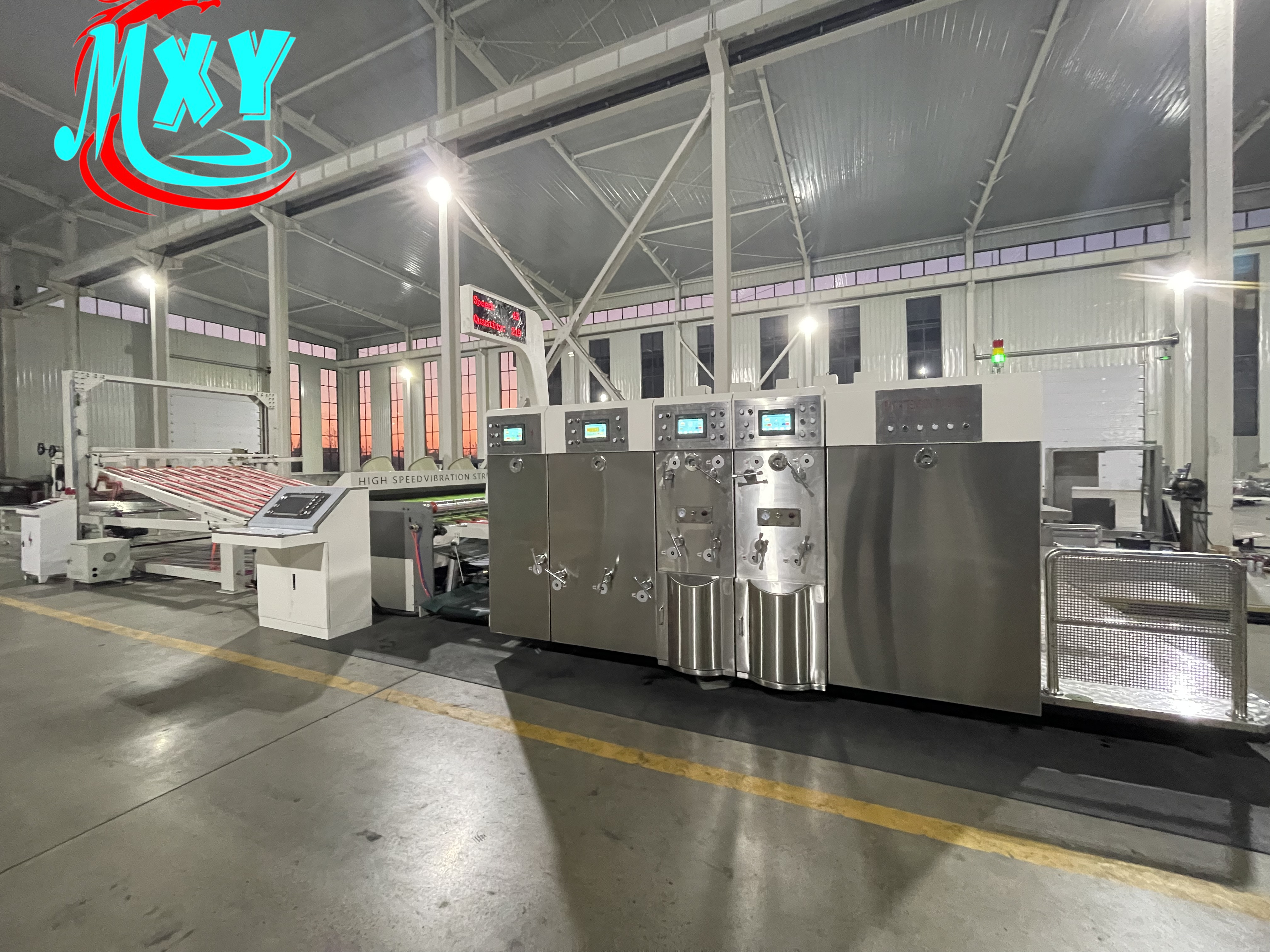

Jumbo Size Corrugated Carton Box Slotting MachineAUTOMATIC FLEXO PRINTER SLOTTER DIE-CUTTER MACHINE (JUMBO)
2200x5300mm
Flexo Printer Slotter Machine for Corrugate Board
Printer Machine with Stacker Machine Features:
·This machine is designed and made to high quality and safety standard, with the advantages of high speed, auto contrl and quick shift.
·Adopt high quality material and parts. All electronic components comform to CE standard, and safety standard can equalo European.
·Well hardened and ground transmission gear, hardness >60 HRC.
·Auto aero return and suto reset.
·Use expansion sets tight link to reduce abrasion of the shaft, keep precision of the machine for longer time.
·All cylinders and rollers are chromed plated for ideal hardness.
·PLC control system with touch screen control.
·Able to save orders, speed up the order shift.
| Data/Model | 1600*3600 | 2200*3600 | 2200*4000 | 2200*4600 | 2200*5300 | 2600*3600 | 2600*4000 | 2600*4600 | 2600*5300 |
| Printing Speed(m/min) | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 |
| Max.Machine Speed(pcs/min) | 120 | 100 | 100 | 100 | 80 | 80 | 80 | 80 | 80 |
| Max.Feeding Size(mm) | 1570x3600 | 2100x3600 | 2100x4000 | 2100x4600 | 2100x5300 | 2500x3600 | 2500x4000 | 2500x4600 | 2500x5300 |
| Min.Feeding Size(mm) | 450x760 | 550x900 | 550x900 | 550x900 | 550x900 | 650x900 | 650x900 | 650x900 | 650x900 |
| Max. Printing Area(mm) | 1540x3600 | 2080x3600 | 2080x4000 | 2080x4600 | 2080x5300 | 2480x3600 | 2480x4000 | 2480x4600 | 2480x5300 |
| Thickness of Printing Plate(mm) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
Lead edge Feeder
► China Famous Brand ► Touch Screen control the machine
► Automatic alignment function
►Good super extension function and precise paper feeding function
►Variable frequency drive control for vacuum blower fan for increased or decreased vacuum suction to match different size cardboard.
Rotary die Cutter
►International Famous Brand Anvil cover: Germany Depair
►Side to side oscillation of anvil drum(45mm)
►Anvil trimmer to keep surface of the anvil covers flat and smooth.
►The die drum’s transverse movement can prolong the service life of anvil cover.
►The die-cut cylinder lateral register is about±10mm
What are the advantages and disadvantages of die cutting?
Die cutting is great for thin materials, but it does not work for all projects. For instance, thick materials or different ones at the same time in the cutter may not work. Additionally, not using a die cutter properly could result in scoring the material instead of cutting through it
What are the advantages of die molding?
5 Advantages of Die Casting Technology
Complex Thin-walled Parts. ...
High Mechanical Properties. ...
High Dimensional Tolerance. ...
Smooth Surfaces. ...
Cost-Effective for Mass Production.
