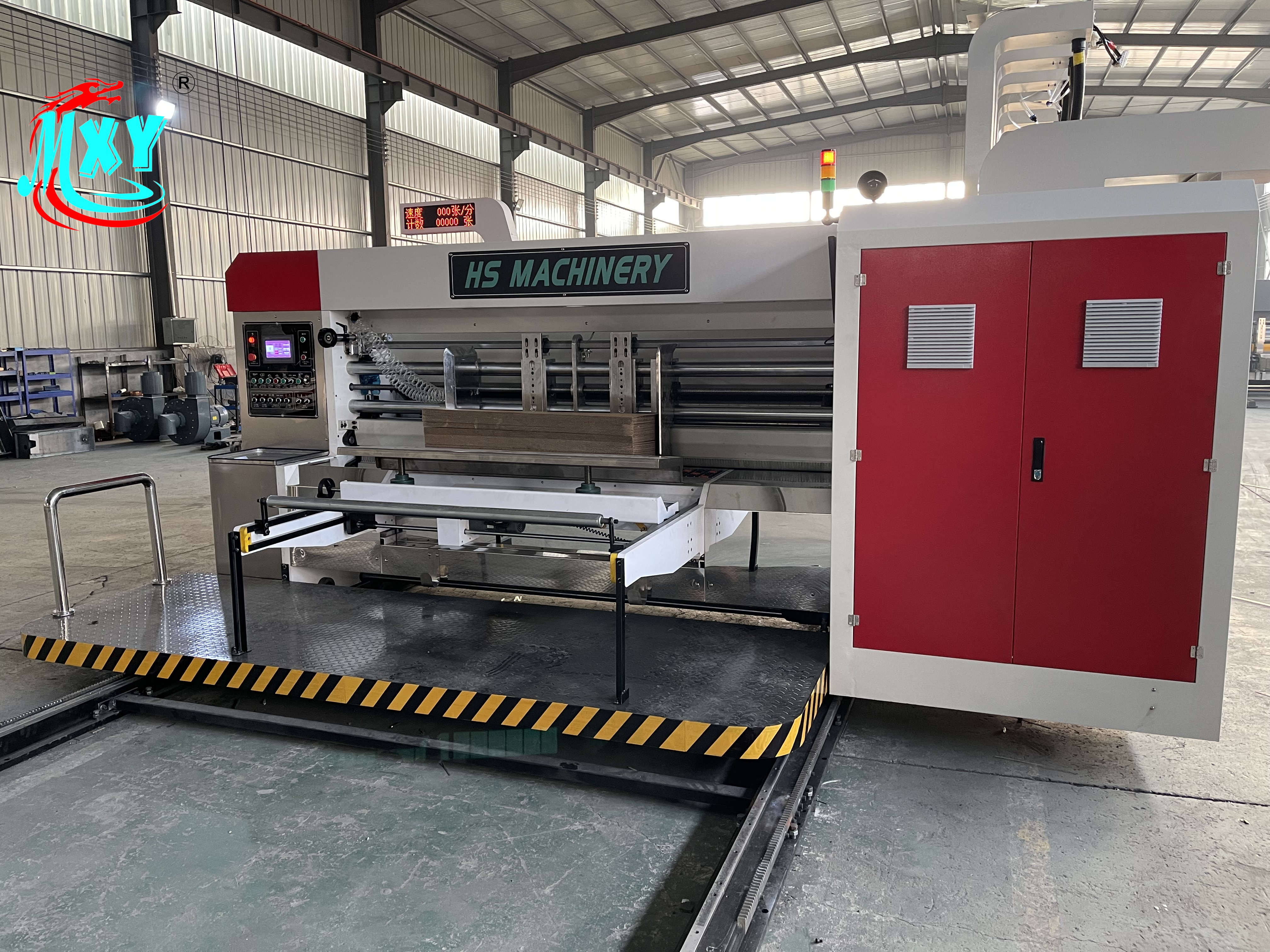

One color Printer Slotter Rotary Die Cutter In Line Case Maker
Model: 2200x5200
Technical parameters:
Max. sheet: 2200x5200mm
Min. sheet: 500 x 1800mm
Max. Printing area: 2200x5200mm
Min. Printing area:500x1800mm
Paperboard thickness: 3-9mm
Design speed: 40 sheets / min.
Dimension: 39210 x 8530x2500mm
Total power: 325.2KW
Total weight: 168.26 Tons
Iron wall thickness: 90 mm
Cliche thickness: 3.4mm, 3.7mm, 3.8mm,7mm.
Printing tolerance: +1.5mm
Folding error:+1.5mm
Production Description
The whole machine is designed and made according to high requirements with reliable and
safety function; allows quick order changing and user friendly operation;
1. Independent computer control is able to store different orders,enable quick order changing;
2.Each working unit is motorized for open and close actions,with warning alarm system to ensure safety;
3.The distance adjustment of the feeding roll,press roll,and netted roll are achieved by electric control;
4.Central collection system for the dust and waste flakes
5.With automatic zero setting and reset function;
6.Driving gears are imported products,its grinding hardness is above 60 degrees;
7.Adopted joint ring-free technology,to reduce abrasion and achieve precise printing result;
8.Select the excellent materials and parts,all orders are made of the fine steel,with chrome plating and harden treatment;
9.Adopted gear lubricant auto self-balance device,to keep the lubricant levels in each unit uniform at all times;
Feeder Unit
1.Continuous or skip feeding is available with counter;
2.Main motor is protected from starting up when units are not fully closed and locked.
3.Motorized backstop forward /backward and up/down position for easy and quick adjustment;
4.Copy sun automation lead edge feeder with strong vacuum transfer for precise and stable feeding;
5.Feeding roll is made of two-layer rubber,inner layer is soft and outer layer is hard,this makes inner layer more flexible and
surface more wear-resistant,and reduce the flute damage of the cardboard;
6.Dust remove system with brush and segmented vacuum sheets cleaner;Self-locked system adopts for adjusting feeding rolls
gap,motorized and PLC control of feeder side guides;
7.Variable frequency drive control for vacuum blower fan for increased or decreased vacuum suction to match different size
cardboard.
